In this “Create custom property in SharePoint” article, we will learn about how we can add a custom additional property to the SharePoint Framework -SPFx web part in the web part configuration pane. This is my third article in the SPFx framework learning series – you may refer to my previous articles:
- Understanding solution structure in SharePoint framework (SPFx)
- Develop your first hello world web part in sharepoint framework (SPFx)
Create custom property in SharePoint Framework – SPFx web part pane

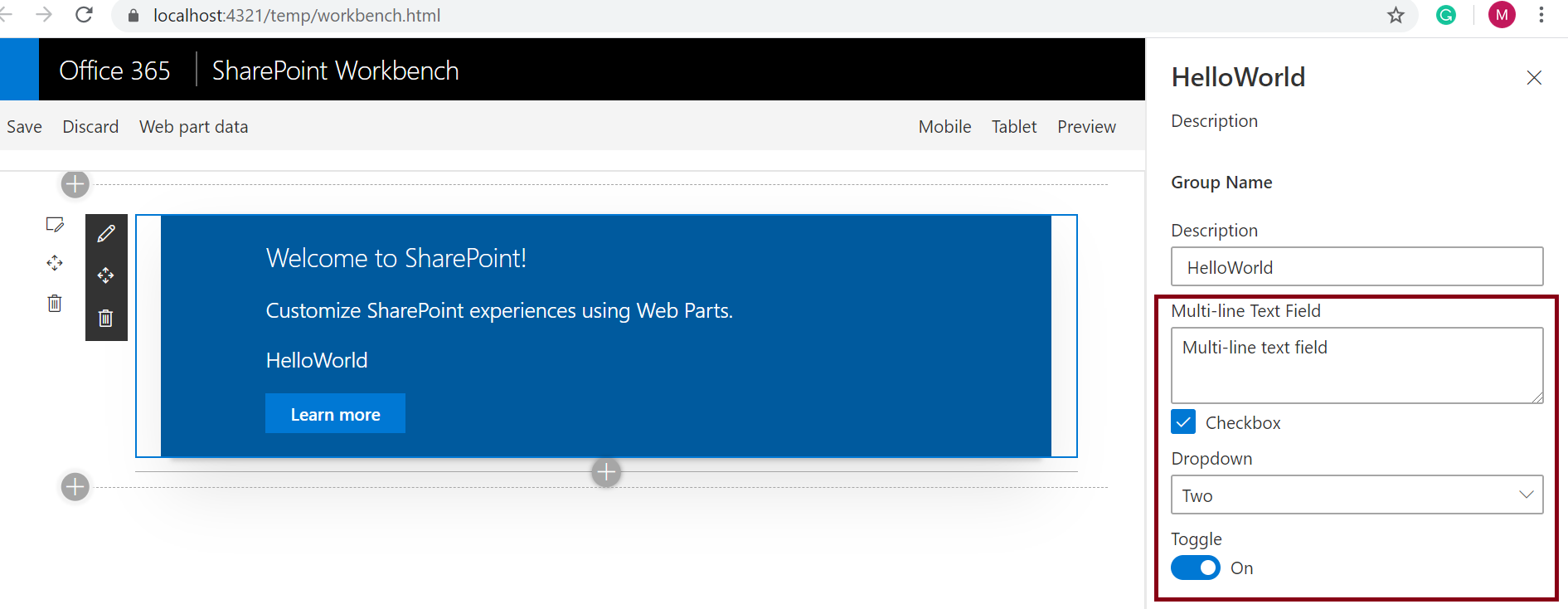

First, let’s look at the below screenshot – when we developed the default first hello world web part, we can see only the “Description” property in the web part property configuration pane. However, now we could see some additional configurable properties like Multi-line-Text Field, Checkbox, Dropdown, and Toggle control in the web part configuration pane. Here, in this article, I will explain how these additional controls have been added over here.
Create custom property in SharePoint Framework (custom properties SharePoint) – Coding

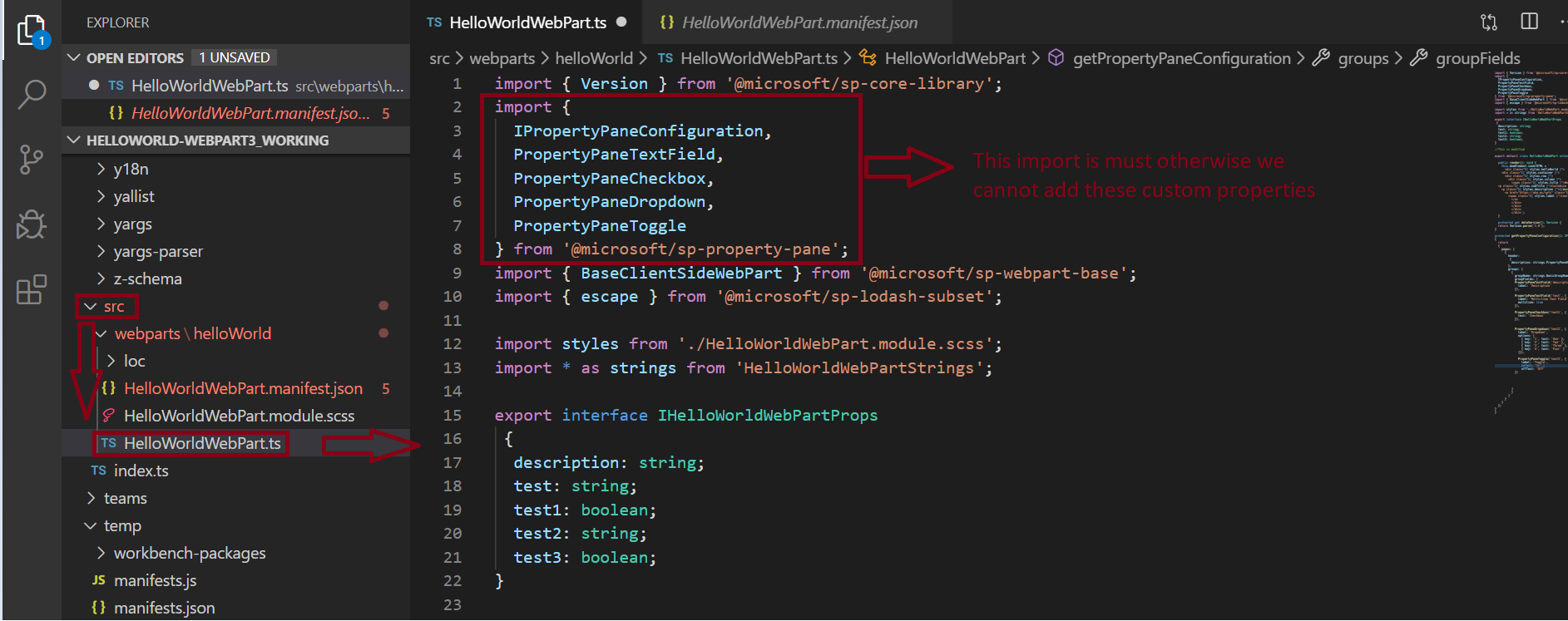

I am not describing how to create a new project here – I am taking forward my previous demo project(Hello World), and starting from here. Step 1: Import the necessary property pane from the ‘@microsoft/sp-property-pane’ Let’s open the HelloWorldWebPart.ts file from the project file structure. At the beginning of this file, we must add the below code otherwise this will not work.
import {
IPropertyPaneConfiguration,
PropertyPaneTextField,
PropertyPaneCheckbox,
PropertyPaneDropdown,
PropertyPaneToggle
} from '@microsoft/sp-property-pane';
Note:
- In the above import, we can import as many allowed property pane we want – here I am importing Text Field, Checkbox, Dropdown, Toggle.
Step 2:
Add the above fields in the export section. In the below IHelloWorldWebPartProps interface by default when we create default hello world web part, we will just have “description: string” property now we have added the below additional property test: string; test1: boolean; test2: string; test3: boolean;
export interface IHelloWorldWebPartProps
{
description: string;
test: string;
test1: boolean;
test2: string;
test3: boolean;
}
Step 3: Handle the page render section Go to the default class HelloWorldWebPart extends BaseClientSideWebPart <IHelloWorldWebPartProps> section. By default, we can see the below line for the rendering of the description field. <p class=”${ styles.description }”>${escape(this.properties.description)}</p>
export default class HelloWorldWebPart extends BaseClientSideWebPart <IHelloWorldWebPartProps>
{
public render(): void {
this.domElement.innerHTML = `
<div class="${ styles.helloWorld }">
<div class="${ styles.container }">
<div class="${ styles.row }">
<div class="${ styles.column }">
<span class="${ styles.title }">Welcome to SharePoint!</span>
<p class="${ styles.subTitle }">Customize SharePoint experiences using Web Parts.</p>
<p class="${ styles.description }">${escape(this.properties.description)}</p>
<p class="${ styles.description }">${escape(this.properties.test)}</p>
<p class="${ styles.description }">${escape(this.properties.test2)}</p>
<a href="https://aka.ms/spfx" class="${ styles.button }">
<span class="${ styles.label }">Learn more</span>
</a>
</div>
</div>
</div>
</div>`;
}
Now, in the same file – let’s go to the getPropertyPaneConfiguration() method which has been inherited from IPropertyPaneConfiguration. We can see all the below additional properties have been added in the “Groups” section just below the default property description.
- PropertyPaneTextField
- PropertyPaneCheckbox
- PropertyPaneDropdown
- PropertyPaneToggle
protected getPropertyPaneConfiguration(): IPropertyPaneConfiguration
{
return
{
pages: [
{
header:
{
description: strings.PropertyPaneDescription
},
groups: [
{
groupName: strings.BasicGroupName,
groupFields: [
PropertyPaneTextField('description', {
label: 'Description'
}),
PropertyPaneTextField('test', {
label: 'Multi-line Text Field',
multiline: true
}),
PropertyPaneCheckbox('test1', {
text: 'Checkbox'
}),
PropertyPaneDropdown('test2', {
label: 'Dropdown',
options: [
{ key: '1', text: 'One' },
{ key: '2', text: 'Two' },
{ key: '3', text: 'Three' },
{ key: '4', text: 'Four' }
]}),
PropertyPaneToggle('test3', {
label: 'Toggle',
onText: 'On',
offText: 'Off'
})
]
}
]
}
]
};
}
All the below property functions have been defined in “index-internal.d.ts” file.
- PropertyPaneTextField
- PropertyPaneCheckbox
- PropertyPaneDropdown
- PropertyPaneToggle
So if we go the definition of all the above each property function we will land into the below : PropertyPaneTextField
export declare function PropertyPaneTextField(targetProperty: string, properties: IPropertyPaneTextFieldProps): IPropertyPaneField<IPropertyPaneTextFieldProps>;
export declare function PropertyPaneCheckbox(targetProperty: string, properties: IPropertyPaneCheckboxProps): IPropertyPaneField<IPropertyPaneCheckboxProps>;
export declare function PropertyPaneDropdown(targetProperty: string, properties: IPropertyPaneDropdownProps): IPropertyPaneField<IPropertyPaneDropdownProps>;
export declare function PropertyPaneToggle(targetProperty: string, properties: IPropertyPaneToggleProps): IPropertyPaneField<IPropertyPaneToggleProps>;
"preconfiguredEntries": [{
"groupId": "5c03119e-3074-46fd-976b-c60198311f70", // Other
"group": { "default": "Other" },
"title": { "default": "HelloWorld" },
"description": { "default": "HelloWorld description" },
"officeFabricIconFontName": "Page",
"properties": {
"description": "HelloWorld",
"test": "Multi-line text field",
"test1": true,
"test2": "2",
"test3": true
}
}]
PropertyPaneDropdown('test2', {
label: 'Dropdown',
options: [
{ key: '1', text: 'One' },
{ key: '2', text: 'Two' },
{ key: '3', text: 'Three' },
{ key: '4', text: 'Four' }
]}),
Custom property pane SPFx (SPFx web part property pane) – What field types are supported in the web part property pane?
- Button
- Checkbox
- Choice group
- Dropdown
- Horizontal rule
- Label
- Link
- Slider
- Textbox
- Multi-line Textbox
- Toggle
- Custom
Download: Create custom property in SharePoint Framework – SPFx web part pane
Summary: Create custom property in SharePoint Framework – SPFx web part pane
- How do we create a custom property pane field?
- What is the SharePoint framework custom property pane?
- What field types are supported in the web part property pane?
